5.0ml External Screw Cryopreservation Tube

Better Compatibility:The total height of 5ml external rotation cryopreservation tube and box is 2 inches, which is the same as most cryopreservation boxes on the market, so you can make better use of the prepared cryopreservation rack to protect your assets.
The internal diameter of the tube is twice that of the current ordinary 2 ml cryopreservation tube. It can be inserted into a sampling spoon or large pieces of tissue.
The sealing structure is designed on the pipe cap, which can ensure that the stored liquid has no leakage.
The outer edge of the pipe cap is larger than the diameter of the pipe body, which is also conducive to the clamping of automatic equipment.
The side wall of the pipe can be made with the same one-dimensional code as the bottom as required, and the corresponding code display or scale or writing area.

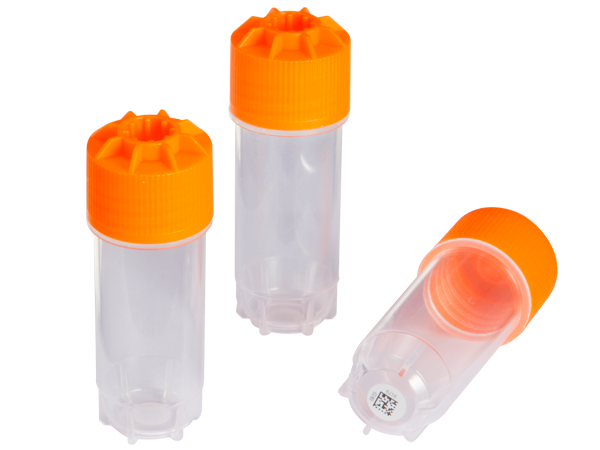

There are prefabricated two-dimensional codes and corresponding digital display codes at the bottom of the tube.
Working Volume: The effective volume of 5.0ml internal rotation cryopreservation tube is 6.0ml to reserve expansion space and store 5ml liquid samples at ease.

The 5.0 ml external screw cryopreservation tube, with a total height of 2 inches between the base and the box cover, can be interchanged with 96-well 1ml and 48-well 2ml boxes to maximize the utilization of cryopreservation space.

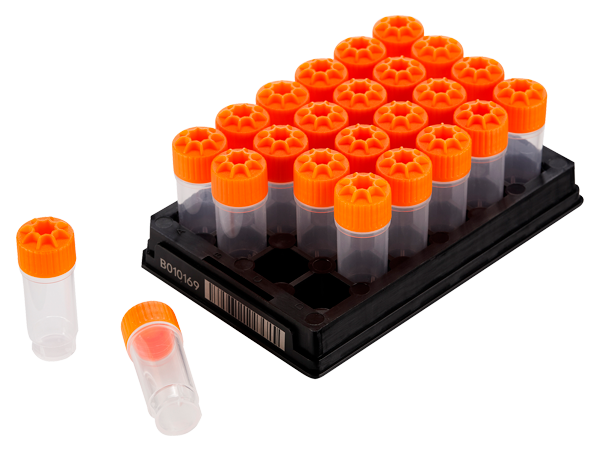

The 5.0 ml external screw cryopreservation tube is arranged with 24-well standard SBS, which can share 4-channel hand-held cap openers with 48-well oblique 2ml cryopreservation tube.

The inner diameter of the tube can meet the needs of freezing and embedding tissue blocks, or can be used for the preservation of large samples such as urine, feces and hair.

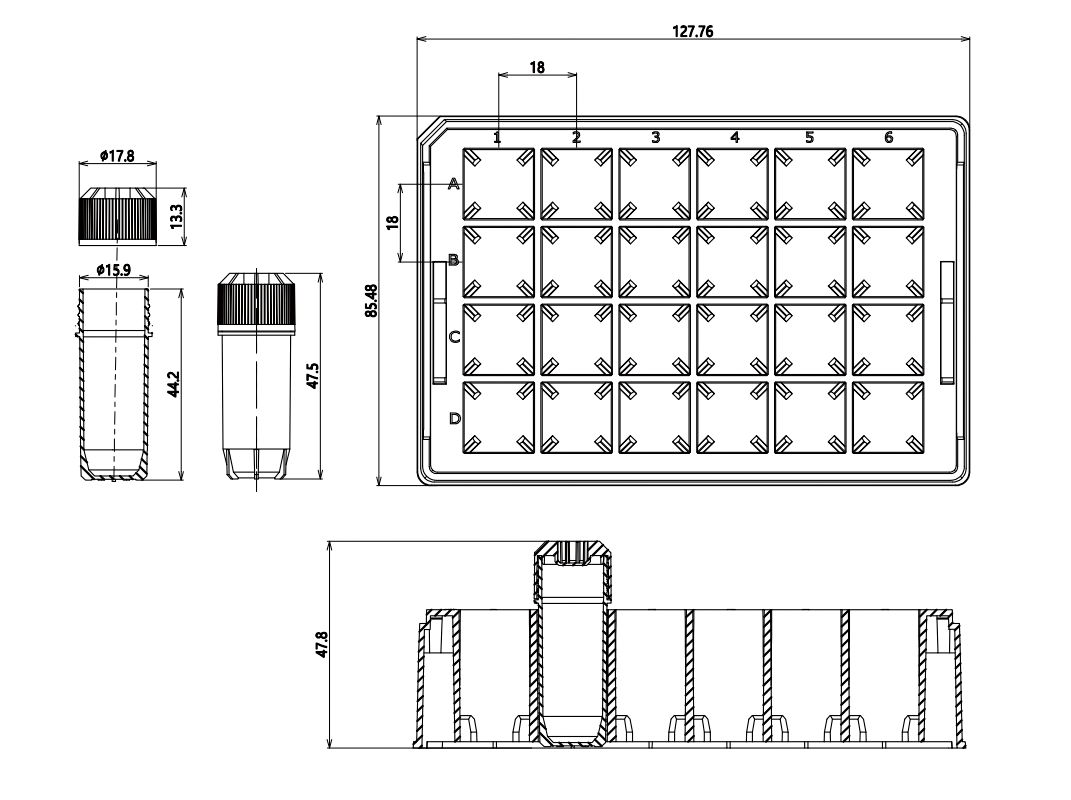

Products Drawing

Specifications

5.0ml Cryopreservation Tube (Boxed)

Cat. No.	BB-CVO2450-SS(B)
Description	5.0ml, thick type, color external screw cap, sterilization, suitable for SBS standard 24 (4X6) cryopreservation box.
Quantity	24/box
Thread Style	External
Color(cap/base)	Default orange/Optional
Cap type	Octagonal / Round octagonal
Max. Volume (at room temperature)	5.94ml
Work Volume (-80℃/-196℃)	5.29ml

5.0ml Prefabricated QR Code Cryopreservation Tube (Boxed)

Cat. No.	BB-CVO2450-SS2D(B)
Description	5.0ml, thick type, cryopreservation tube with prefabricated QR code at the bottom, color external screw cap, sterilization, suitable for SBS standard 24 (4X6) cryopreservation box.
Quantity	24/box
Thread Style	External
Color(cap/base)	Default orange/Optional
Cap type	Octagonal / Round octagonal
Max. Volume (at room temperature)	5.94ml
Work Volume (-80℃/-196℃)	5.29ml

5.0ml 4-code-in-1 Prefabricated QR Code Cryopreservation Tube (Boxed)

Cat. No.	BB-CVO2450-SS2D4(B)
Description	5.0ml, thick type, cryopreservation tube with prefabricated QR code at the bottom, and prefabricated 1D bar code at the side wall, color external screw cap, sterilization, suitable for SBS standard 96 (4X6) cryopreservation
Quantity	24/box
Thread Style	External
Color(cap/base)	Default orange/Optional
Cap type	Octagonal / Round octagonal
Max. Volume (at room temperature)	4.99ml
Work Volume (-80℃/-196℃)	4.53ml
